Cast Washers | CS Industries, LLC

Products

Cast Washers
Project description

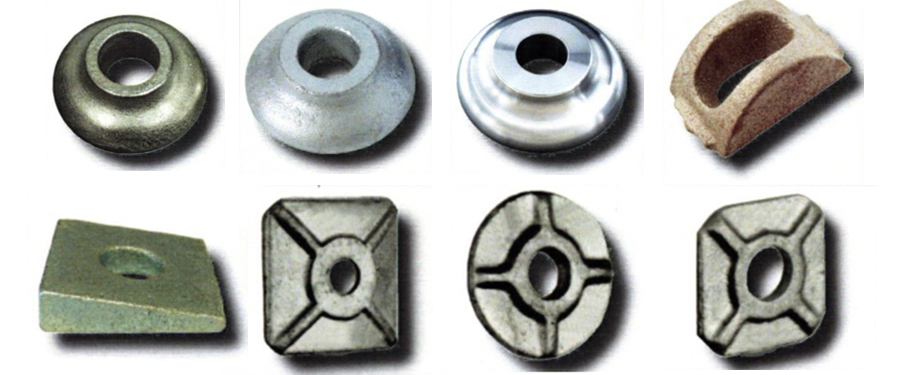

Cast Washers

Gray Iron – ASTM A48, Ductile Iron – ASTM A536, Malleable Iron – ASTM A338, Stainless Steel – ASTM C692

Request a Quote
Cast Washers

OGEE Plain Finish Washers

Cast Washers

OGEE Galvanized Washers

Bolt Size and HeightTop O.D.Bottom O.D.Cast Iron Weight Per Piece
1/2”1-3/8”2-3/8”0.418
5/8”1-5/8”2-3/4”0.550
3/4”1-7/8”3”0.682
7/8”2”3-1/2”1.210
1”2-1/2”4”1.518
1-1/8”2-1/2”4-1/4”2.508
1-1/4”2-1/2”4-1/2”2.596
1-1/2”3”5-1/2”4.048
1-3/4”3-1/4”6”5.500
Bolt Size and HeightTop O.D.Bottom O.D.Cast Iron Weight Per Piece
1/2”1-3/8”2-3/8”0.418
5/8”1-5/8”2-3/4”0.550
3/4”1-7/8”3”0.682
7/8”2”3-1/2”1.210
1”2-1/2”4”1.518
1-1/8”2-1/2”4-1/4”2.508
1-1/4”2-1/2”4-1/2”2.596
1-1/2”3”5-1/2”4.048
1-3/4”3-1/4”6”5.500
Cast Washers

OGEE Stainless Steel 304 or 316 Washers

Cast Washers

Hillside Plain or Galvanized Washers

*ASTM A48 or A536

Bolt Size and HeightTop O.D.Bottom O.D.Cast Iron Weight Per Piece
1/2”1-3/8”2-3/8”0.418
5/8”1-5/8”2-3/4”0.550
3/4”1-7/8”3”0.682
7/8”2”3-1/2”1.210
1”2-1/2”4”1.518
1-1/8”2-1/2”4-1/4”2.508
1-1/4”2-1/2”4-1/2”2.596
1-1/2”3”5-1/2”4.048
1-3/4”3-1/4”6”5.500
Bolt SizeWeight per Piece
3/8”4 oz.
1/2”5.5 oz.
5/8”8 oz.
3/4”9.8 oz.
7/8”14.4 oz.
1”1 lb. & 4oz.
1-1/8” & 1-1/4”3.0 lbs.
Cast Washers

Beveled Washers

*NEMA Standard

Cast Washers

Curved Rectangular Washers

*NEMA Standard

Bolt SizeSquare DimensionThicknessDiameterApprox. Ship Wt. per 100 pcs.
3/8”1.25”.34”.56”7.40 lbs.
1/2”1.25”.34”.56”7.40 lbs.
5/8”1.25”.38”.69”12 lbs.
SizeCatalog No.Max Bolt Dia.Thickness at BossApprox. Ship Wt. per 100 pcs.
*2-1/4” x 3-1/2”CR33/4”3/8”45 lbs.
*3” x 4”CR4A7/8”1/2”93 lbs.
3” x 4”CR4B1”1/2”93 lbs.
Cast Washers

Malleable Flat Washers

*NEMA Standard

Cast Washers

Square Flat Washers

*NEMA Standard

SizeCatalog No.Max Bolt Dia.Thickness at BossApprox. Ship Wt. per 100 pcs.
3” Dia.RF33/4”7/16”44 lbs.
4” Dia.RF47/8”1/2”87 lbs.
4” Dia.RF4A1”1/2”87 lbs.
SizeCatalog No.Max Bolt Dia.Thickness at BossApprox. Ship Wt. per 100 pcs.
*2-1/4 x 2-1/4”SQ2145/8”9/32”20 lbs.
*2-1/4 x 2-1/4”SQ214A3/4”9/32”20 lbs.
Request a Quote

CS Industries, LLC is a family owned and operated manufacturer and direct import specialist located in Birmingham, Alabama specializing in castings and fabricated metal products for residential, commercial and industrial customers.
