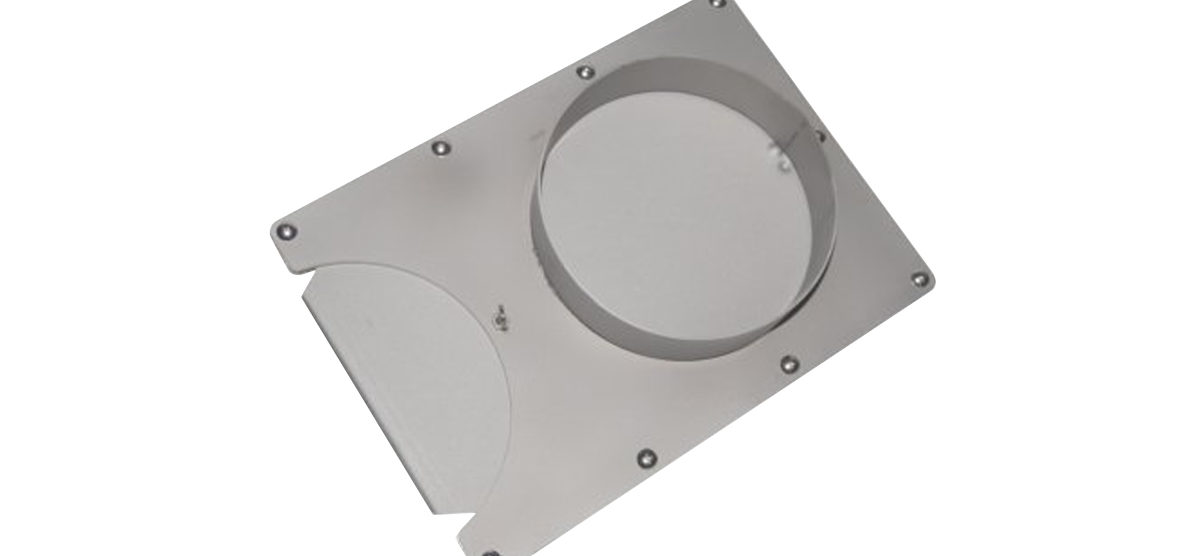

Home Products Blast Gates & Cut-offsDie Cast Aluminum Full Blast Gate

• Used for wood, plastic, powder and other dusts in collector systems

• Economically designed. Locking screw included

• Connecting collars are undersized to allow slip-fit into nominal pipe or duct

• Bolt-together construction for ease of disassembly for cleaning

• Maximum temperature 400° F

• Available in sizes 2″ to 30″

DIA	PART #	A	B	C	D	E	F	WT.
2”	7BG02	2.32	3.36	4.50	5.88	0.75	1.94	0.4
3”	7BG03	2.82	4.01	5.64	7.00	0.75	1.91	0.7
4”	7BG04	3.87	5.00	6.86	9.12	0.75	1.87	1.0
5”	7BG05	4.76	6.00	8.00	11.75	0.88	2.16	1.4
6”	7BG06	5.82	7.00	9.99	14.38	0.88	2.13	2.0
7”	7BG07	6.81	8.00	11.25	15.62	1.05	2.50	2.7
8”	7BG08	7.85	9.62	12.62	18.12	1.53	3.50	4.4
9”	7BG09	8.88	10.62	13.30	20.38	1.33	3.17	5.4
10”	7BG10	9.83	11.37	14.37	22.12	1.50	3.70	6.2
11”	7BG11	10.88	12.37	15.37	25.38	1.44	3.44	7.4
12”	7BG12	11.80	13.25	16.25	26.75	1.49	3.66	8.0
14”	7BG14	13.84	15.79	18.96	30.12	1.88	4.39	11.8
16”	7BG16	15.88	17.90	21.28	34.88	1.84	4.40	15.1
18”	7BG18	17.80	20.23	32.81	40.38	3.11	7.04	30.0
20”	7BG20	19.78	22.37	34.24	45.00	3.16	7.22	37.0
22”	7BG22	21.72	24.60	34.11	47.25	3.12	7.10	45.0
24”	7BG24	23.68	26.64	34.38	51.88	3.15	7.22	55.0
26”	7BG26	25.75	28.56	36.75	57.90	3.02	7.10	590.5
28”	7BG28	27.56	31.00	39.75	65.21	3.18	7.20	70.5
30”	7BG30	29.56	33.19	42.50	66.74	3.06	7.15	77.2
