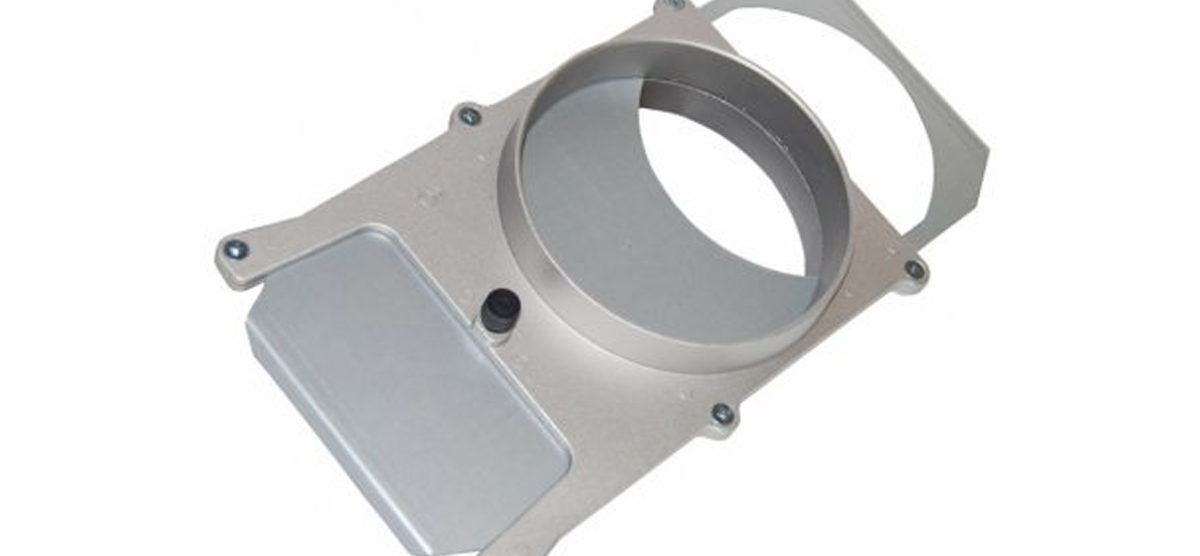

Cast Aluminum Self-Cleaning Full Blast gates

Self-cleaning gates are the same construction as our full blast gates except the galvanized steel slide moves through the open end to push out debris from wood pulp and sticky materials.

DIA	PART #	A O.D.	B	C	D	E	F	G	WT.
2”	BGSK02	2.32	3.69	4.56	6.25	2.41	0.78	1.91	0.5
3”	BGSK03	2.82	4.02	5.63	7.38	2.94	0.75	1.91	0.8
4”	BGSK04	3.87	5.00	5.86	9.56	3.85	0.75	1.87	1.0
5”	BGSK05	4.76	6.00	8.00	11.81	4.59	0.88	2.16	2.0
6”	BGSK06	5.82	7.00	9.97	14.20	6.08	0.88	2.13	3.0
7”	BGSK07	6.81	8.00	11.25	16.56	6.86	1.05	2.51	3.4
8”	BGSK08	7.85	9.63	12.63	18.88	8.18	1.53	3.50	4.8
9”	BGSK09	8.88	10.63	13.60	20.43	8.65	1.33	3.17	5.8
10”	BGSK10	9.83	11.38	14.38	22.69	10.09	1.50	3.70	7.2
12”	BGSK12	11.80	13.25	16.25	27.44	13.05	1.50	3.66	11.2
14”	BGSK14	13.84	15.80	18.97	30.43	13.87	1.88	4.39	13.6
16”	BGSK16	15.88	32.63	21.28	32.63	15.62	1.85	4.40	15.2
