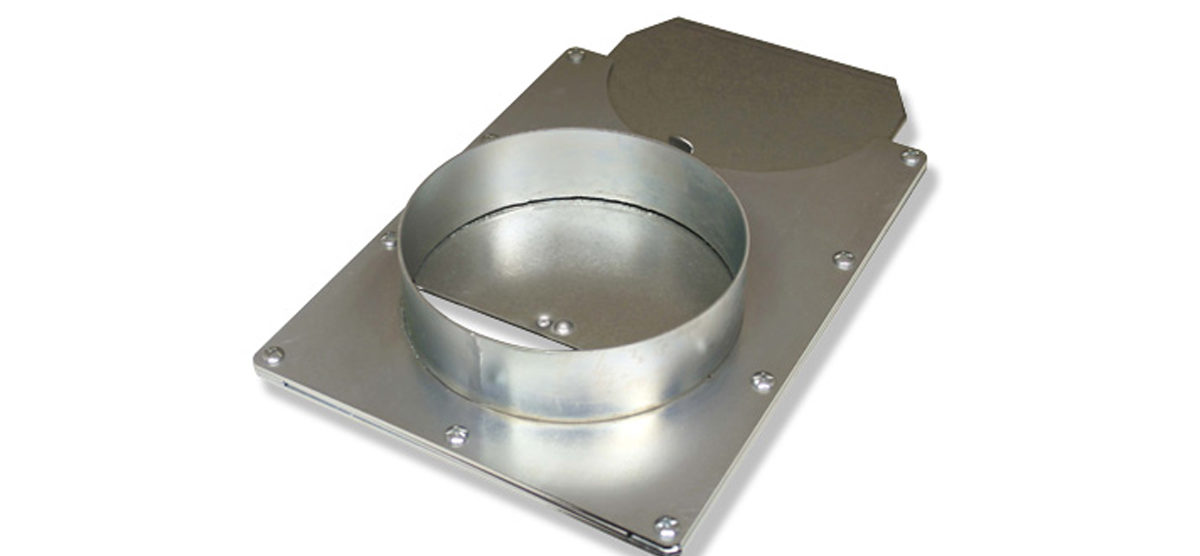

Galvanized Steel Fabricated Blast Gates

Galvanized steel blast gates are constructed the same as our stainless steel gates. These gates are more economical than stainless steel when elevated temperature or corrosion resistance is not required.

DIA	PART #	A O.D.	B	C	D	E	F	G	H	WT.
2”	BGG02C	1.88	4.00	4.50	5.88	1.88	0.88	1.00	2.38	2.3
3”	BGG03C	2.88	5.00	6.00	9.19	2.00	1.00	1.25	4.45	2.6
4”	BGG04C	3.88	6.00	7.50	11.19	2.50	1.00	1.50	4.19	3.8
5”	BGG05C	4.88	7.00	9.50	13.12	3.50	1.12	1.50	4.42	5.2
6”	BGG06C	5.88	7.94	11.00	16.69	4.00	1.12	1.50	4.43	6.4
7”	BGG07C	6.88	9.38	12.50	19.56	4.50	1.12	1.50	4.45	8.0
8”	BGG08C	7.88	10.44	13.50	20.44	4.50	1.12	2.00	4.45	9.6
9”	BGG09C	8.88	11.63	16.00	22.62	5.68	1.44	2.00	4.45	11.5
10”	BGG10C	9.88	12.00	17.00	26.62	6.00	1.12	2.00	5.21	13.4
12”	BGG12C	11.88	14.44	20.25	31.94	7.25	1.12	2.00	4.13	15.4
14”	BGG14C	13.88	16.00	23.25	39.87	8.50	1.12	2.00	5.13	22.8
16”	BGG16C	15.88	18.00	26.50	42.18	9.50	1.00	2.00	5.31	29.0
18”	BGG18C	17.88	20.00	29.13	50.95	10.00	1.00	2.00	5.13	34.2
