Pneumatic Cast Aluminum Blast Gates

Project description

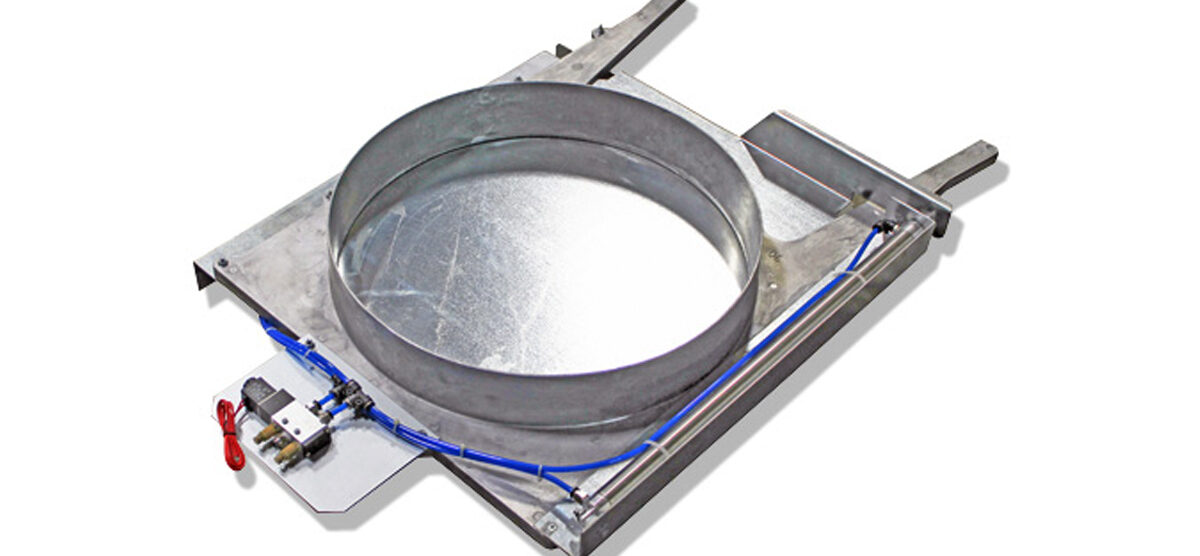

Pneumatic Cast Aluminum Full Blast Gates

Our air-operated gates are fully automatic using an air cylinder that has power in both directions. Instant open/close. 35 lb. load capacity at 80/90 psi., 1/4 in. NPT ports. No lubrication required air cylinder is standard.

DIA	PART #	A	B	C	D	E	F	WT.
2”	BGPN02	2.32	3.80	15.88	3.14	0.78	1.94	2.6
3”	BGPN03	2.82	4.11	18.81	3.26	0.75	1.91	3.8
4”	BGPN04	3.87	5.09	21.76	3.23	0.75	1.87	4.8
5”	BGPN05	4.76	6.10	25.28	3.07	0.88	2.16	5.2
6”	BGPN06	5.82	7.10	27.81	3.12	0.88	2.13	7.0
7”	BGPN07	6.81	8.10	31.53	3.03	1.05	2.51	8.2
8”	BGPN08	7.85	11.60	13.50	17.38	4.00	0.35	8.4
9”	BGPN09	8.88	12.60	14.38	18.68	4.00	0.35	8.5
10”	BGPN10	9.83	16.37	15.38	19.19	4.00	0.35	10.5
12”	BGPN12	11.61	13.20	16.38	20.19	4.00	0.35	11.6
14”	BGPN14	13.84	17.99	20.00	23.85	4.00	0.30	15.8
16”	BGPN16	15.88	19.24	21.02	37.02	4.40	0.35	39.9
18”	BGPN18	17.80	21.47	23.32	42.13	4.13	0.82	44.9
20”	BGPN20	19.78	24.35	25.12	44.93	4.13	0.82	49.9
22”	BGPN22	21.72	26.81	27.90	49.10	4.13	0.84	54.9
24”	BGPN24	23.68	28.72	30.60	53.17	4.13	0.84	59.9
